Product Range

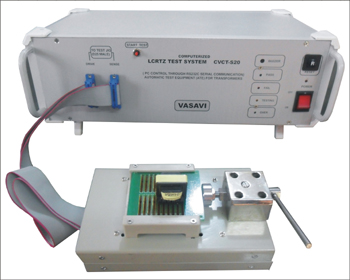

Computerized Transformer Test System (CVCT-S20)

Computerized Automatic Transformer Tester with inbuilt 20 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 10 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

Test Frequency : 50Hz to 10KHz in 6 Steps

Test Signal Voltage : 100mV ~ 1000mV

CVCT-S20 : Technical Data / Demonstration Video

Computerized Transformer Test System (CVCT-S8)

Computerized Automatic Transformer Tester with inbuilt 8 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 4 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

Test Frequency : 50Hz to 10KHz in 6 Steps

Test Signal Voltage : 100mV ~ 1000mV

CVCT-S8 : Technical Data /   Demonstration Video

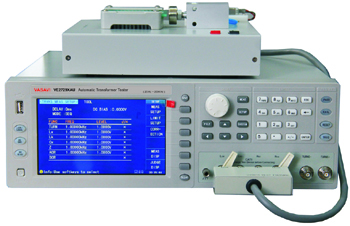

Automatic Transformer Test System

Automatic Transformer Tester with inbuilt 20 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 10 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

VE2729xAU : 200KHz Transformer Tester
VE2739xAU : 500KHz Transformer Tester
VE2749xAU : 1MHz Transformer Tester

VE2729xAU : Technical Data / Demonstration Video

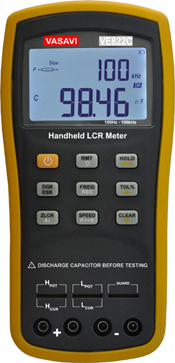

100KHz Handheld LCR Meter (VE822C)

Digital Handheld LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan. It comes with Battery Backup, very easy and handy to use.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

VE822C : Technical Data / Demonstration Video



BUY 100KHz Handheld LCR Meter (VE822C) :

10KHz Digital LCR Meter (VLCRZ)

10KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan.

Test Frequency : 50Hz, 100Hz, 500Hz, 1KHz, 5KHz, 10KHz

Test Signal Voltage : 100mV ~ 1000mV in Steps of 100mV

VLCRZ : Technical Data / Demonstration Video

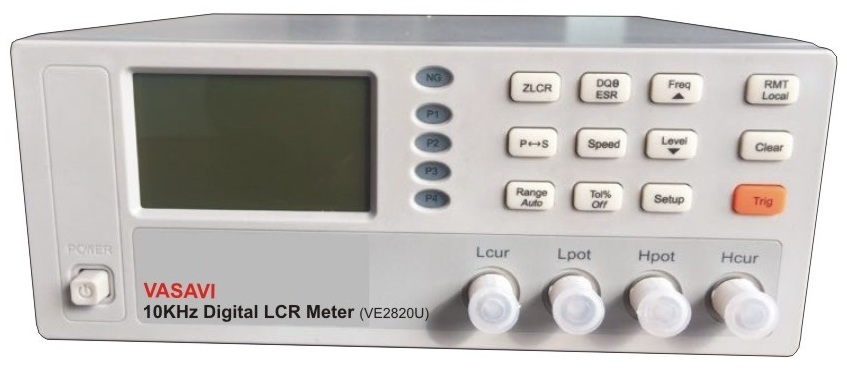

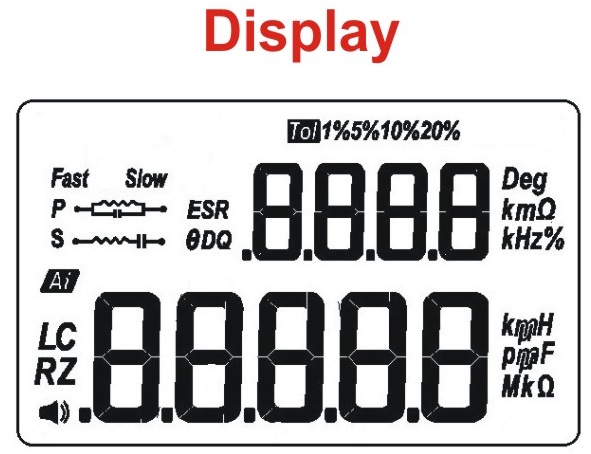

10KHz Digital LCR Meter (VE2820U)

10KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz

Test Signal Voltage : 0.1V , 0.3V , 1V

VE2820U : Technical Data  Demonstration Video

BUY 10KHz LCR Meter (VE2820U) :

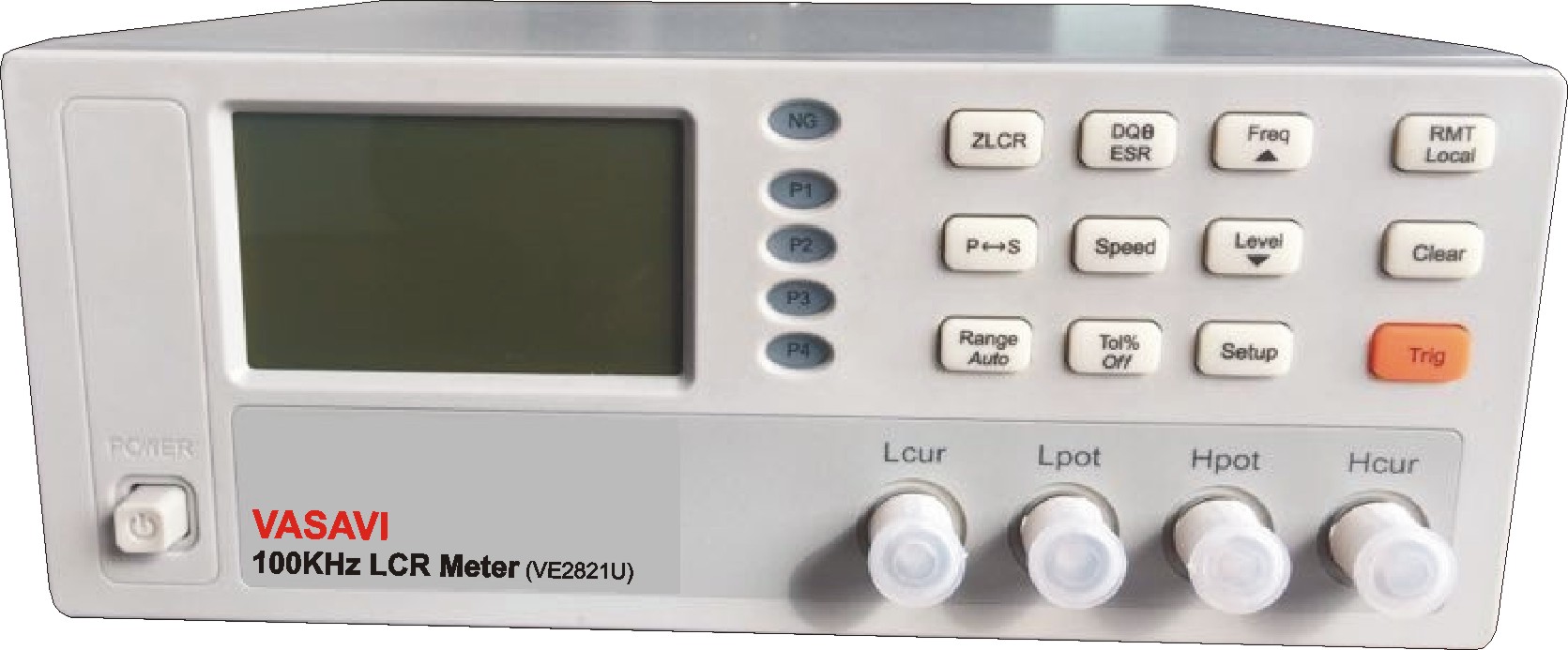

100KHz Digital LCR Meter (VE2821U)

100KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

Test Signal Voltage : 0.1V , 0.3V , 1V

VE2821U : Technical Data Demonstration Video

BUY 100KHz LCR Meter (VE2821U) :

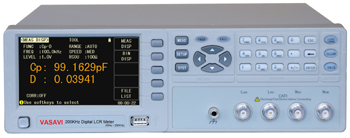

200KHz Digital LCR Meter (VE2836U)

200KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 200KHz

Test Signal Voltage : 100mV , 300mV , 1000mV , 2000mV

VE2836U : Technical Data / Demonstration Video

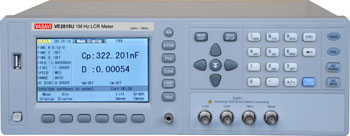

1MHz Digital LCR Meter (VE2815U)

1MHz Digital LCR Meter that can test Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 1MHz

Test Signal Voltage : 10mV ~ 5V in Steps of 10mV

VE2815U : Technical Data / Demonstration Video

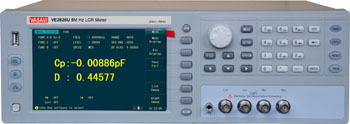

5MHz Digital LCR Meter (VE2826U)

5MHz Digital LCR Meter that can test Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 1MHz

Test Signal Voltage : 10mV ~ 5V in Steps of 10mV

VE2826U : Technical Data / Demonstration Video

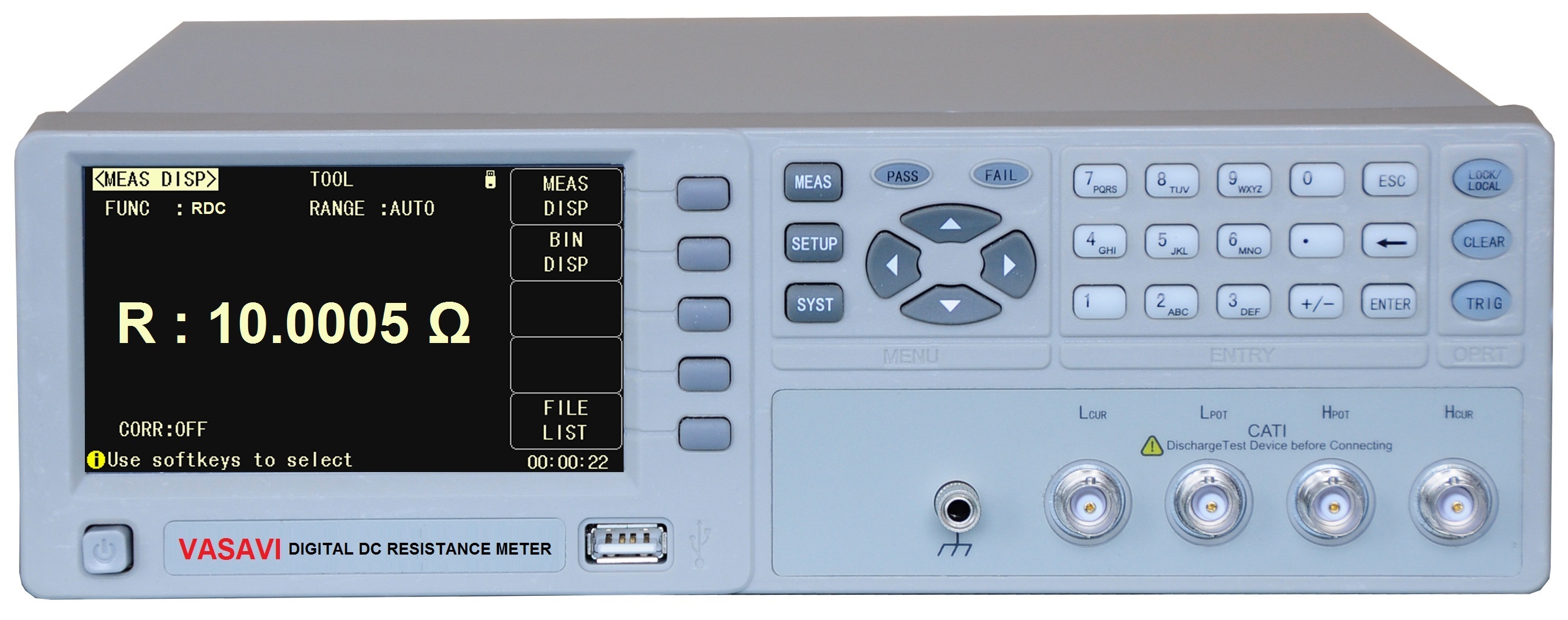

DIGITAL DC RESISTANCE METER (VE2516BU)

VE2516B is a Digital DC Mill-Ohm Resistance Meter with high performance DCR meter with high-accuracy with PASS / FAIL Indication. The meter provides measurement speed up to 250mS per measurement with 5-digit resolution, So itís suitable for measurement of quality control on production line, incoming inspection, component design and evaluation.

Measurement Range : 10m Ohm ~ 30 KOhm

VE2516BU : Technical Data / Demonstration Video

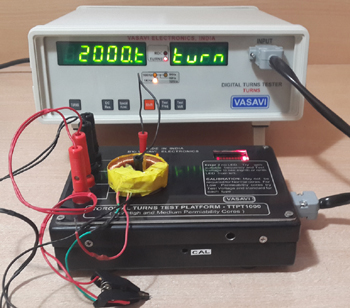

TURNS TESTER for Toroidal Coils (TURNS-TTPT)

Digital TURNS TESTER for Counting Number of Turns for Toroidal Coils , Current Sensor , Current Transformer , Round Core Coils. Can measure, Turns along with Winding Polarity and DC Resistance.

Turns Measurement ( through Toroidal Turns Test Platform) :

TTPT-100 : 5 Turns ~ 1000Turns

TTPT-1000 : 500 Turns ~ 10,000Turns

TURNS-TTPT : Technical Data / Demonstration Video

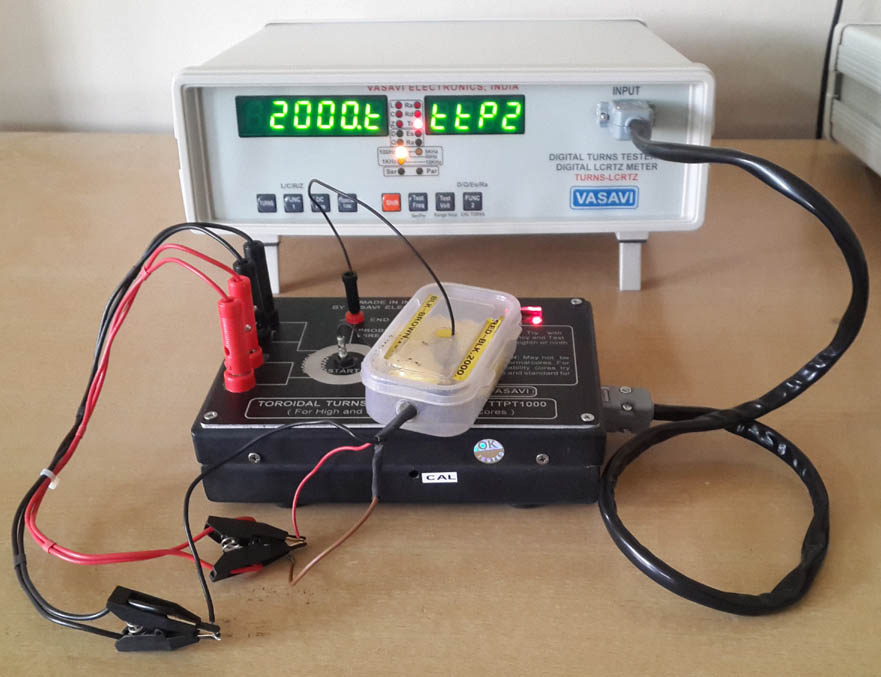

TURNS TESTER for Toroidal Coils (TURNS-LCRTZ)

Digital TURNS TESTER with LCR for Counting Number of Turns for Toroidal Coils , Current Sensor , Current Transformer , Round Core Coils. Can measure, Turns along with Winding Polarity , DC Resistance , Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan.

Turns Measurement ( through Toroidal Turns Test Platform) :

TTPT-100 : 5 Turns ~ 1000Turns

TTPT-1000 : 500 Turns ~ 10,000Turns

TURNS-LCRTZ : Technical Data / Demonstration Video

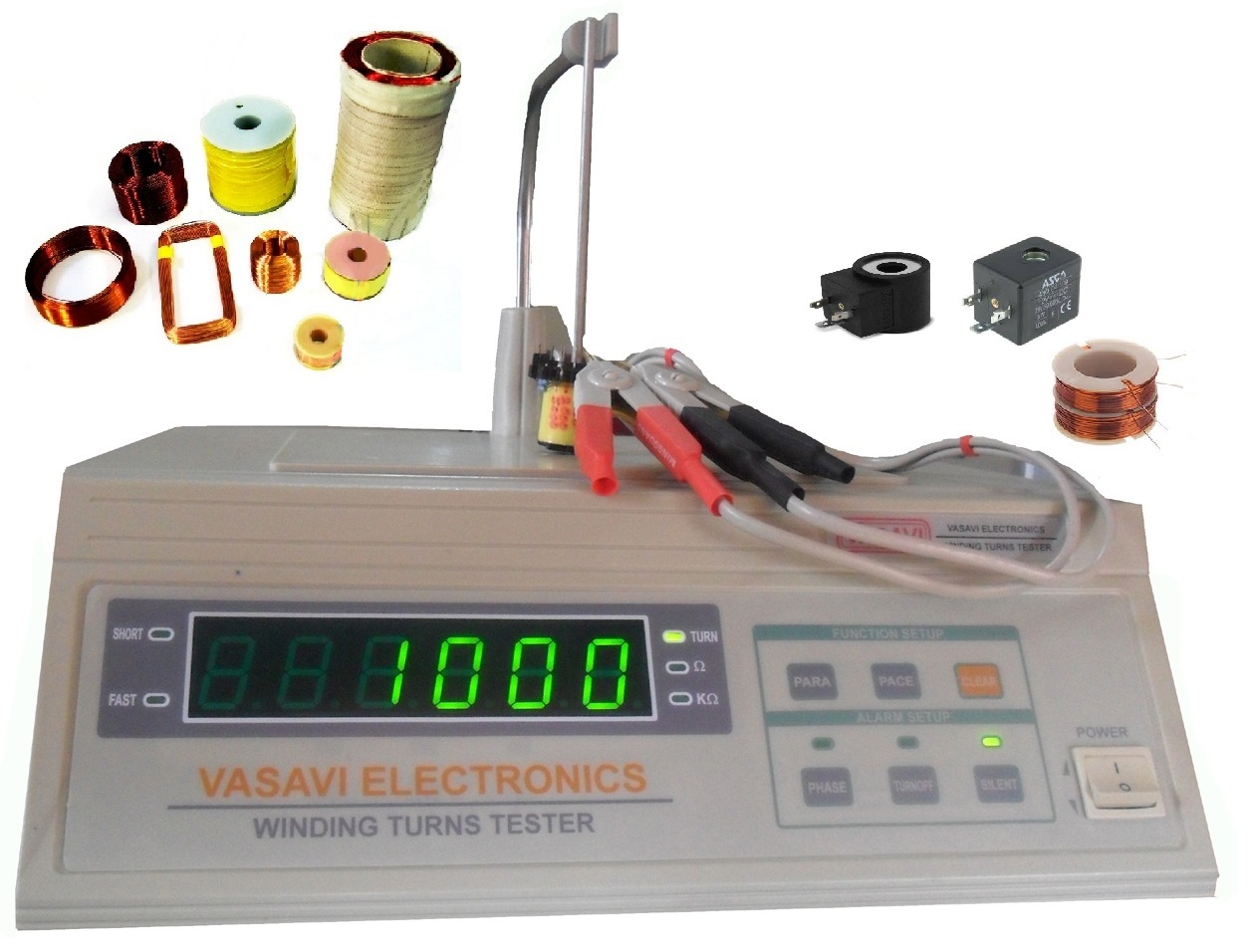

WINDNG TURNS TESTER (VE201R) for Air Core / Solenoid Coils / Bobbin Coils

Winding Turns Tester for Counting Number of Turns for Air Core Coils, Bobbin Coils or Solenoid Coils. Can measure, Turns along with Winding Polarity and DC Resistance.

Turns Measurement : 1 Turns to 80,000 Turns

VE201R : Technical Data /

Demonstration Video

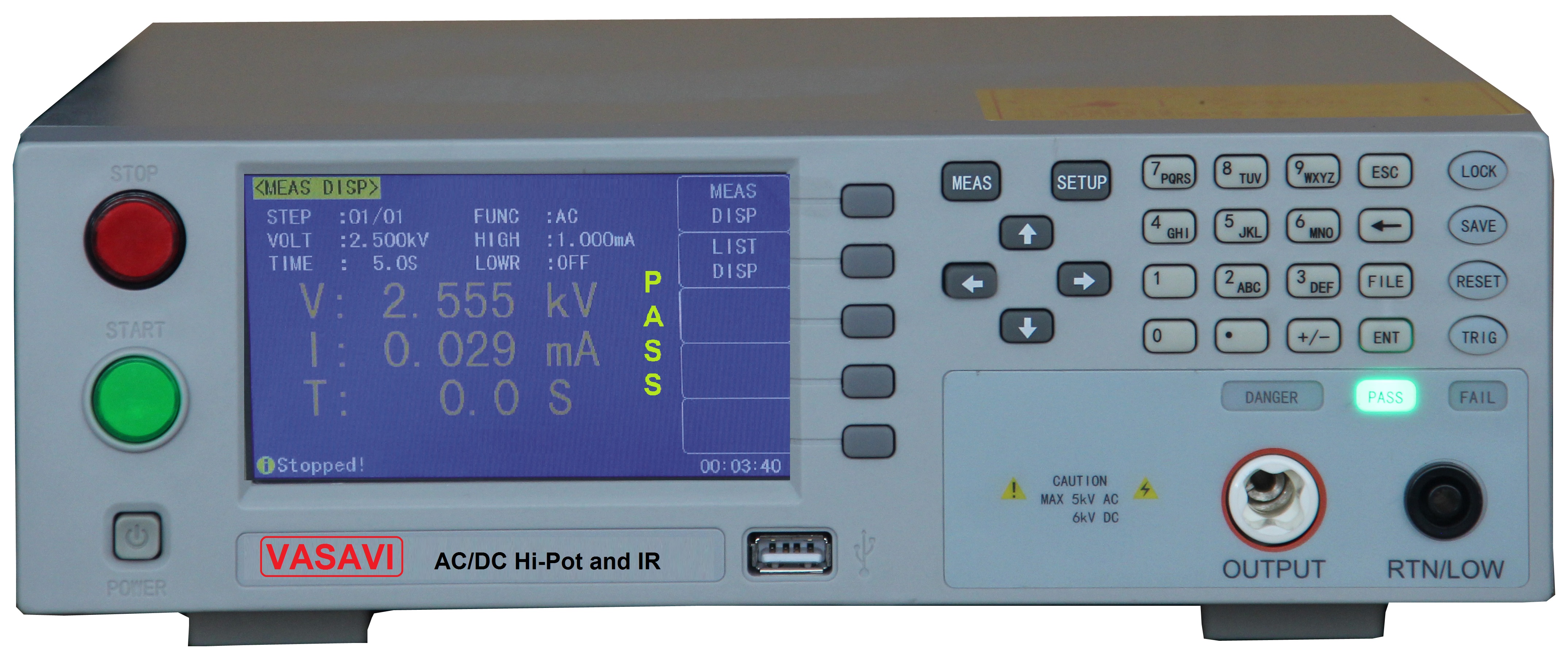

AC / DC Hi-Pot & Insulation Resistance Tester (VE9311U)

Microprocessor Based AC / DC Withstanding Voltage Tester with Insulation Resistance Meter. With PASS / FAIL indications.

AC : 5KV / 12mA ; DC : 6KV / 5mA

VE9311U : AC / DC Withstanding & IR Tester ;  Technical Data / Demonstration Video

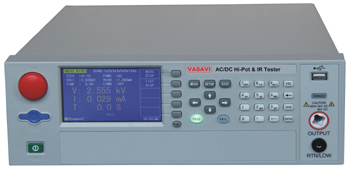

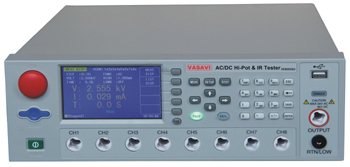

 AC / DC Hi-Pot & Insulation Resistance Tester (VE9051U / VE9053SU)

Microprocessor Based AC / DC Withstanding Voltage Tester with Insulation Resistance Meter. With PASS / FAIL indications.

AC : 5KV / 30mA ; DC : 6KV / 10mA

VE9051U : AC / DC Withstanding & IR Tester ;  Technical Data / Demonstration Video

VE9053SU : AC / DC Withstanding & IR Tester with 8 Channel Scanner ; Technical Data / Demonstration Video

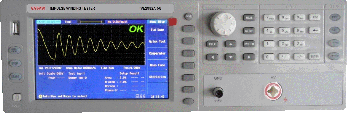

Impulse Winding Tester / Winding Short Tester

Impulse Tester can detect turn & layer short ,the differences in the number of turns and the material of the core. If high impulse voltage is applied, the poor insulation will appear as a corona or layer discharge

VE2882A-3U : 3KV Impulse Winding Tester

VE2882A-5U : 5KV Impulse Winding Tester (Technical Data / Demo Video)

VE2882A2-3U : 3KV with 2 Channel Impulse Winding Tester

VE2882A2-5U : 5KV with 2 Channel Impulse Winding Tester

VE2882A4-3U : 3KV with 4 Channel Impulse Winding Tester

VE2882A4-5U : 5KV with 4 Channel Impulse Winding Tester

(Technical Data / Demo Video  : Magneto Testing / DC Rotor Testing )

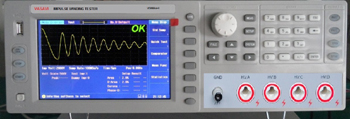

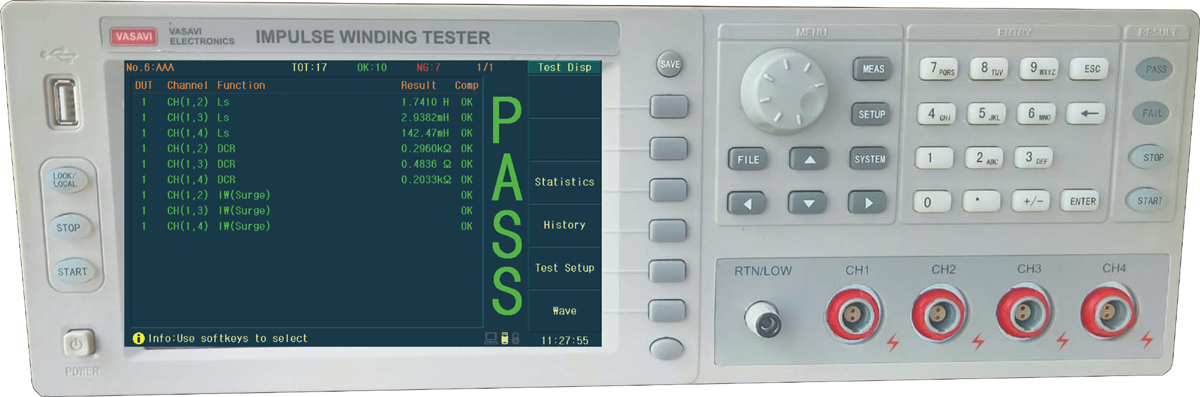

4-Channel / 5-KV IMPULSE WINDING TESTER (VE2882A4-5RLU)

5KV Impulse Tester with in-built 4-Channel Scanner that can detect turn & layer short ,the differences in the number of turns and the material of the core along with Inductance (L), Quality Factor (Q) & DC Resistance (DCR) measurement in any Coil.

Can Test : Impulse Winding Tester (IW), Quality Factor (Q), Inductance (L) & DC Resistance (DCR)

VE2882A4-5RLU : (Technical Data / Demo Video)

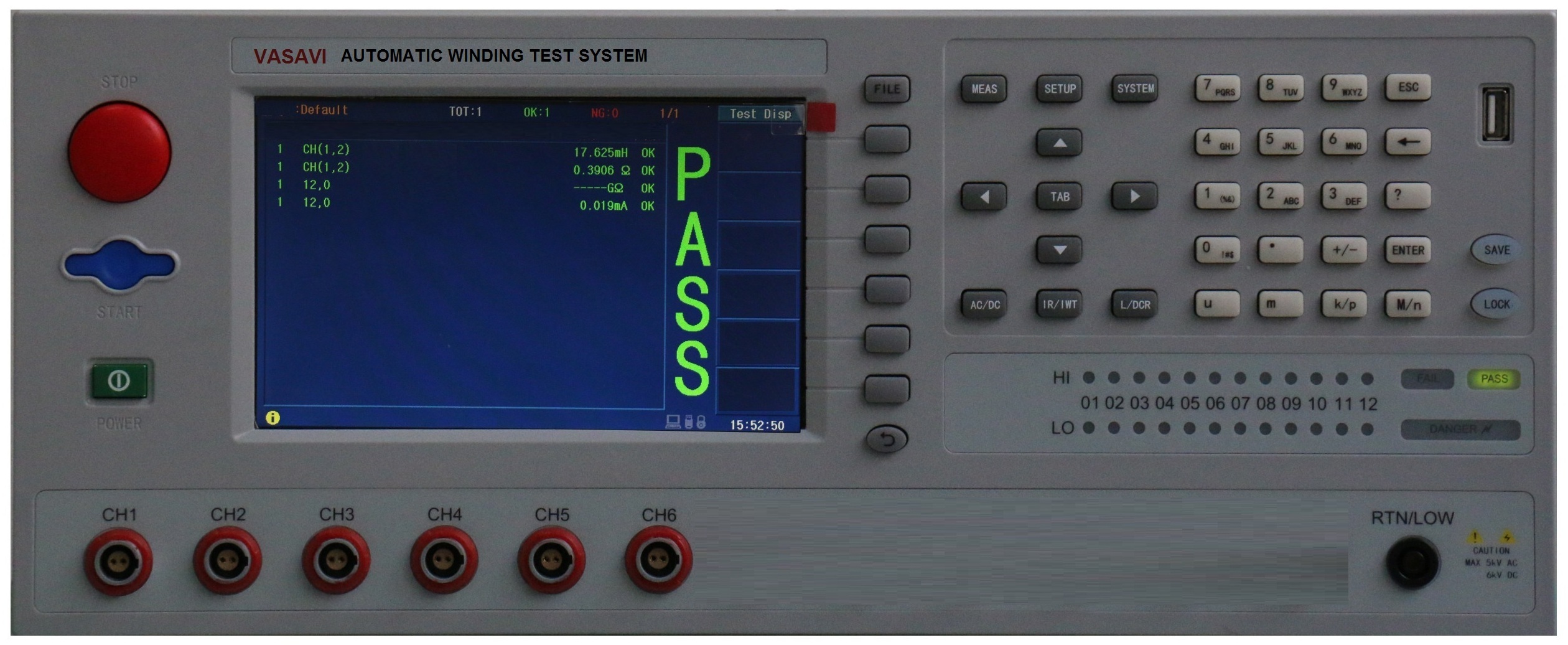

AUTOMATIC WINDING TEST SYSTEM / MOTOR TESTER

Microprocessor based Automatic Test System for Automobile Coils, Magnetos, Alternator, Motor Winding.

Can Test : Impulse Winding Tester (IW), AC/DC HiPot, Insulation Resistance (IR), Inductance (L), DC Resistance (DCR)

VE9036SU : AUTOMATIC WINDING TEST SYSTEM (6-Channel)

(Technical Data / Demo Video)

VE90312SU : AUTOMATIC WINDING TEST SYSTEM (12-Channel)

(Technical Data / Demo Video)

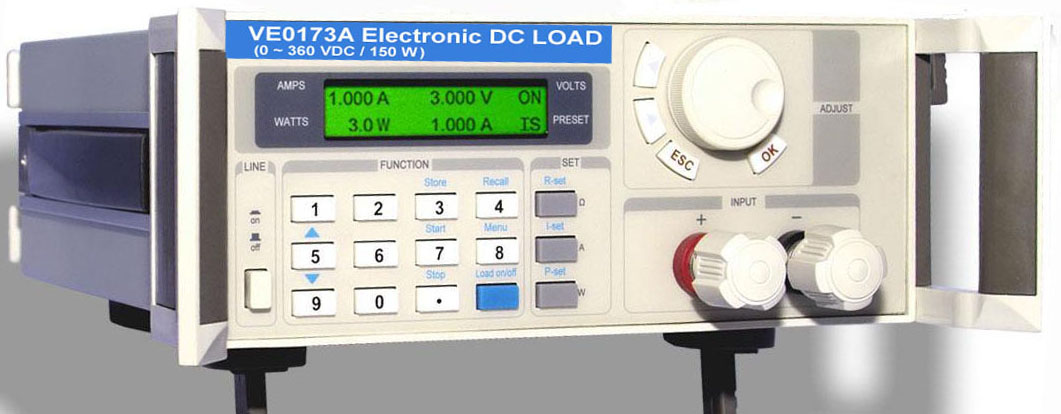

150W / 300W Programmable Electronics DC Load (VE0173A / VE1173A)

Programmable Electronic DC Load for 30A most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CC, CP, CR Mode

VE0173A : 360Vdc / 30A / 150W (Technical Data / Demonstration Video)

VE1173A : 360Vdc / 30A / 300W (Technical Data / Demonstration Video)

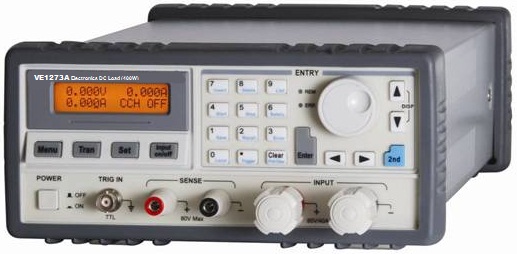

200W / 350W Programmable Electronics DC Load (VE2273A / VE3273A)

Programmable Electronic DC Load for most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CV, CC, CP, CR Mode

VE2273A : 200Vdc / 20A / 200W (Technical Data / Demonstration Video)

VE3273A : 200Vdc / 30A / 350W (Technical Data / Demonstration Video)

VE1273A : 80Vdc / 40A / 400W (Technical Data / Demonstration Video)

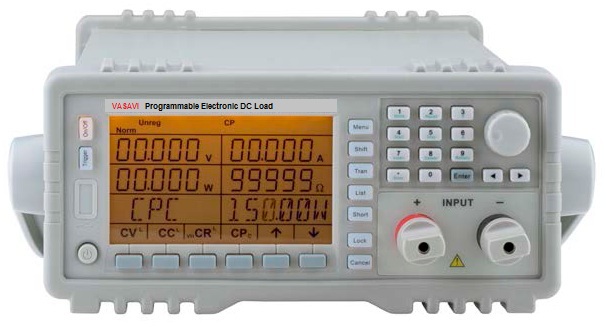

150W / 300W Programmable Electronics DC Load (VE2C1168T / VE1B2168T)

Programmable Electronic DC Load for most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CV, CC, CP, CR Mode

VE2C1168T : 150Vdc / 30A / 150W (Technical Data / Demonstration Video)

VE1B2168T : 500Vdc / 15A / 300W (Technical Data / Demonstration Video)

Computerized Automatic SMPS / ADAPTER TEST SYSTEM (VCAT-S4 )

Computerized Automatic SMPS / ADAPTER test System is most ideal for mobile chargers, battery chargers, SMPS etc. 50V / 2A / 50W

Data Sheet :VCAT - S4

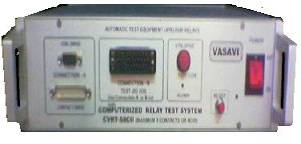

Computerized Automatic Test Equipment ATE for Relays

Ideal for automatic testing of Electro mechanical and Read Relays (Only DC relays)

CVRT-S8 : Computerized Relay Tester for Max. 8 Contacts DC Relay (Technical Data)

CVRT-S16 : Computerized Relay Tester for Max. 16 Contacts DC Relay (Technical Data)

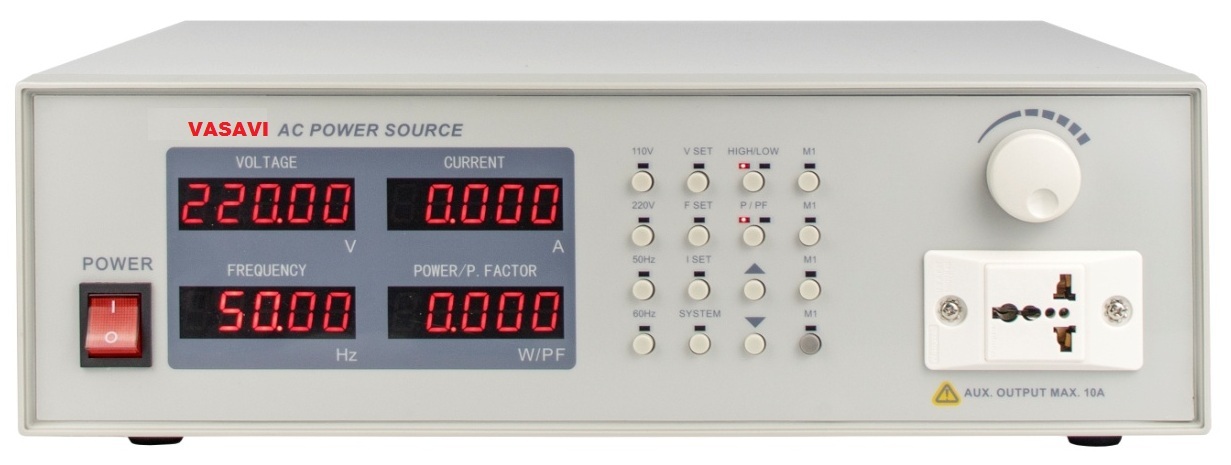

PROGRAMMABLE AC POWER SOURCE (VE5101APS)

Programmable AC Power Source of 1KVA is most ideal for mobile chargers, battery chargers, SMPS Power Supply, LED Drivers & etc.

VE5101APS : 1KVA / 1V ~ 300Vac / 45 ~ 250 Hz (Technical Data / Demonstration Video)

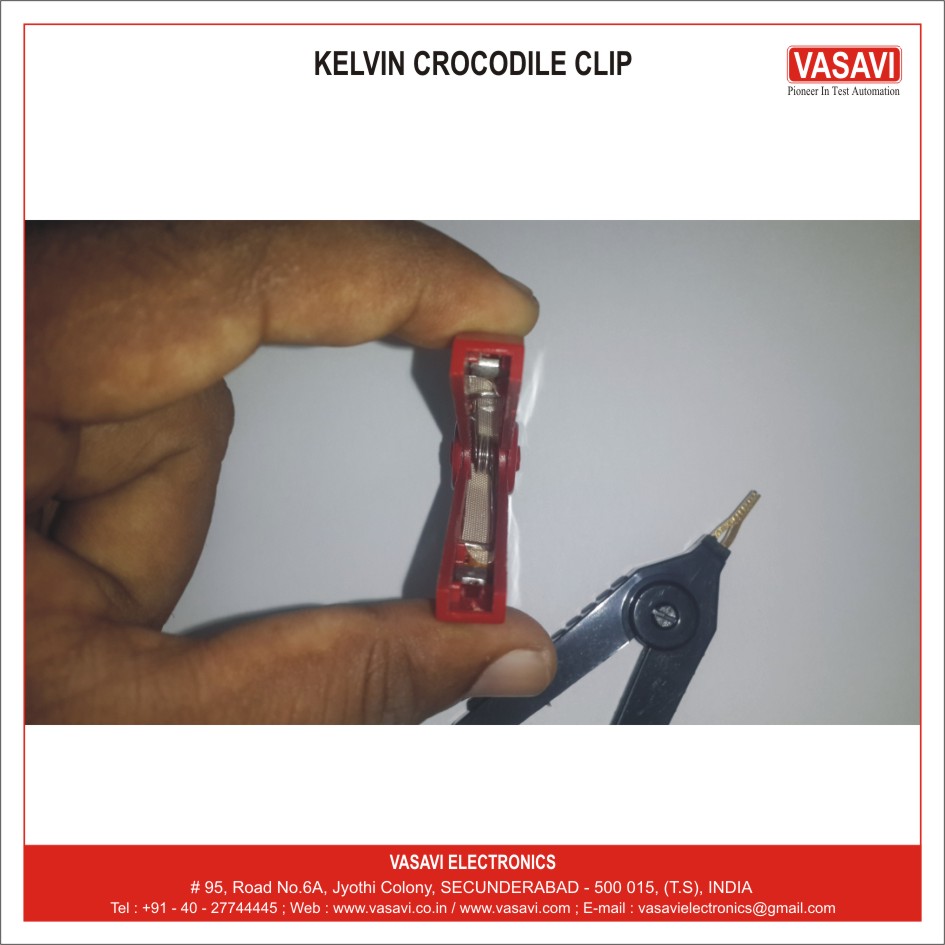

KELVIN CROCODILE TEST CLIP

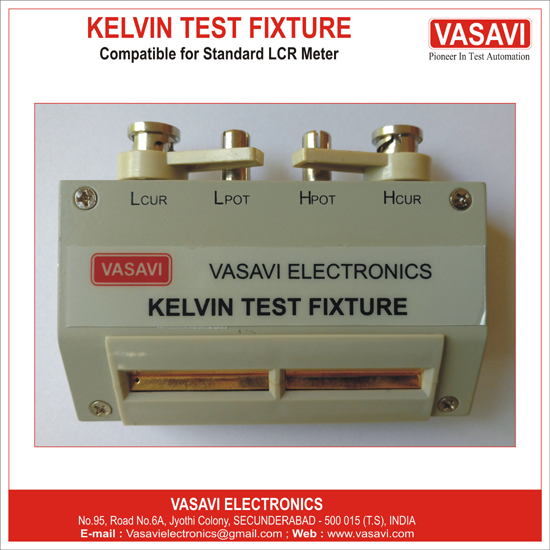

FOUR TERMINAL KELVIN TEST FIXTURE

Suitable Standard LCR Models

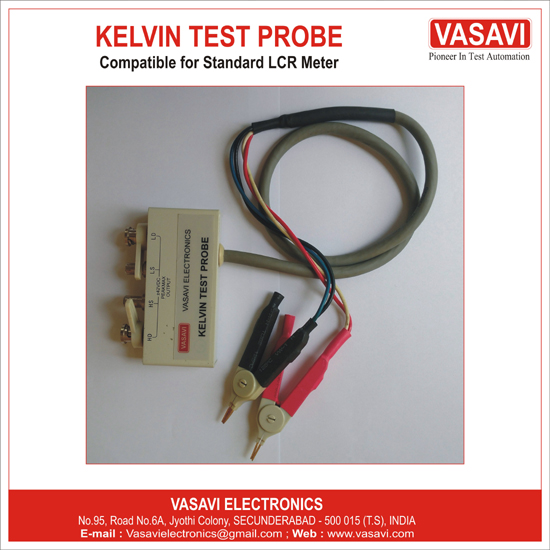

FOUR TERMINAL KELVIN TEST PROBE

Suitable Standard LCR Models

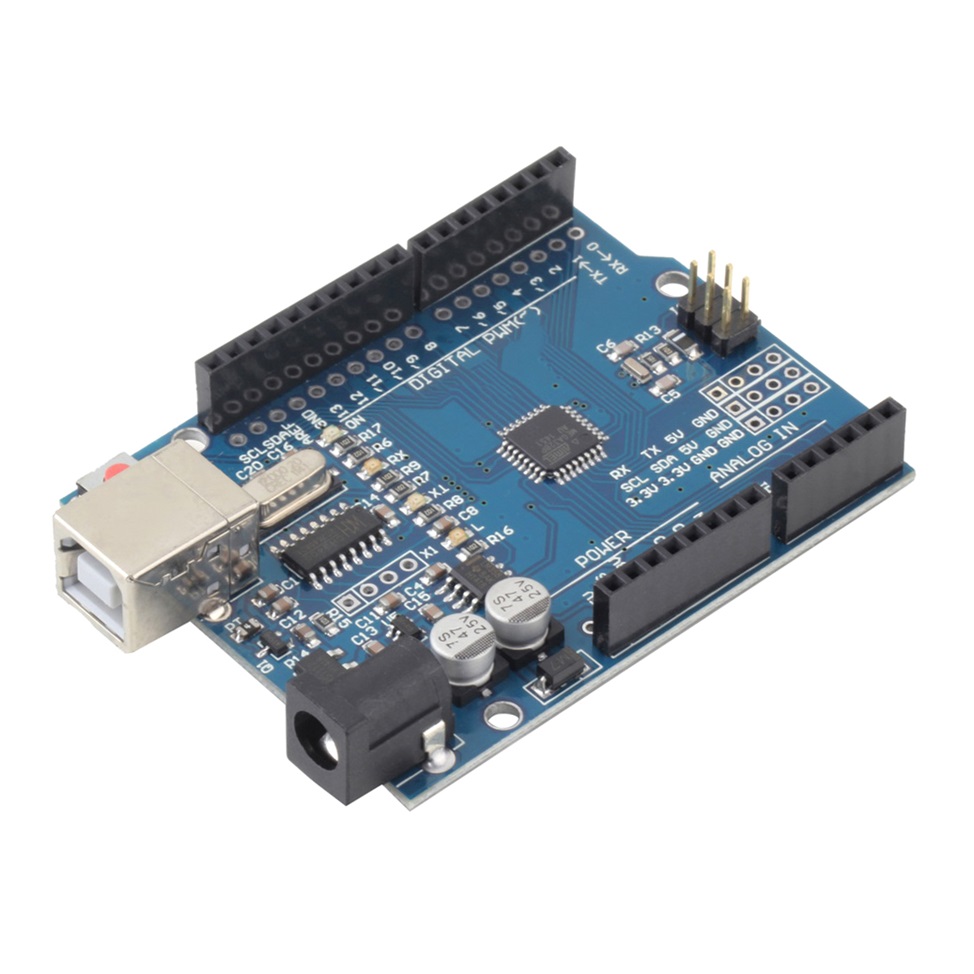

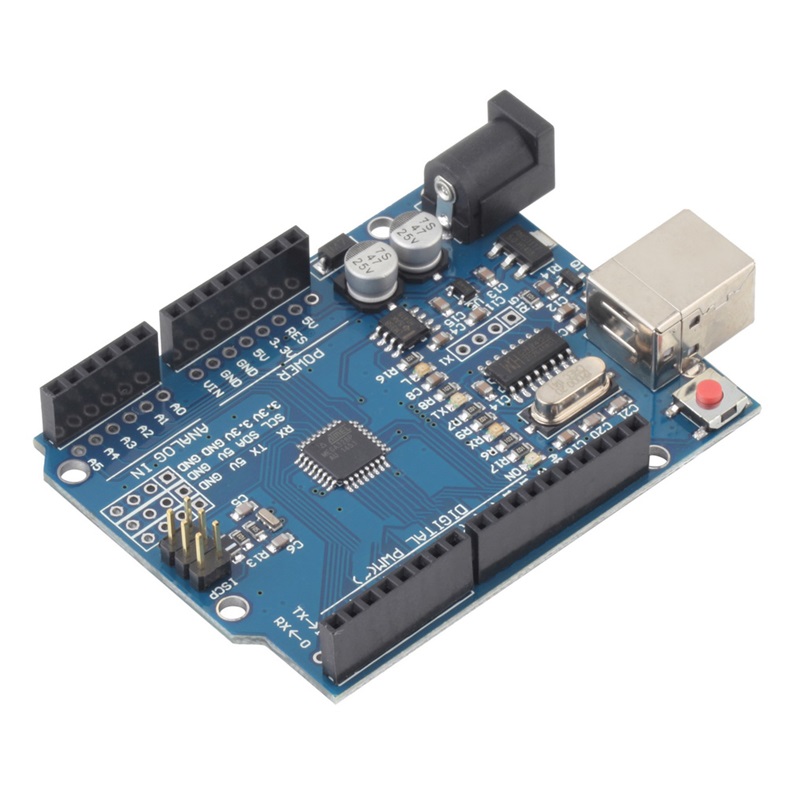

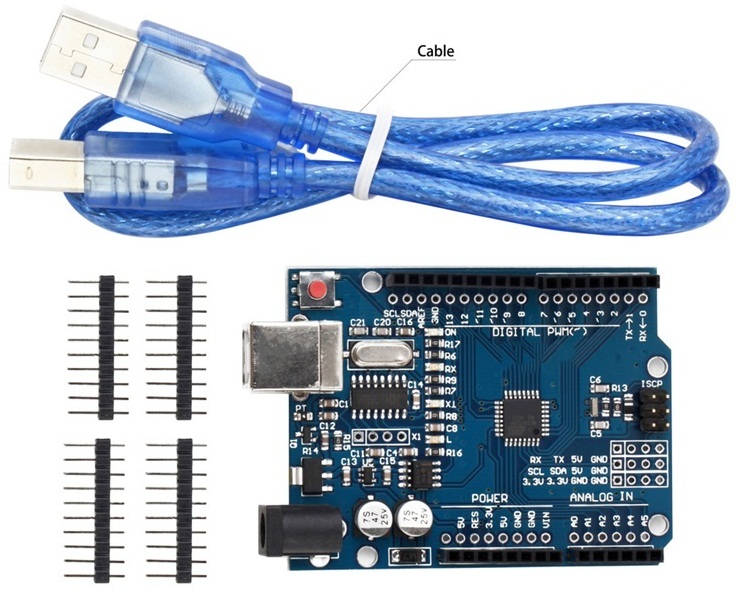

Arduino Uno R3 Compatible Development Board ATmega328P

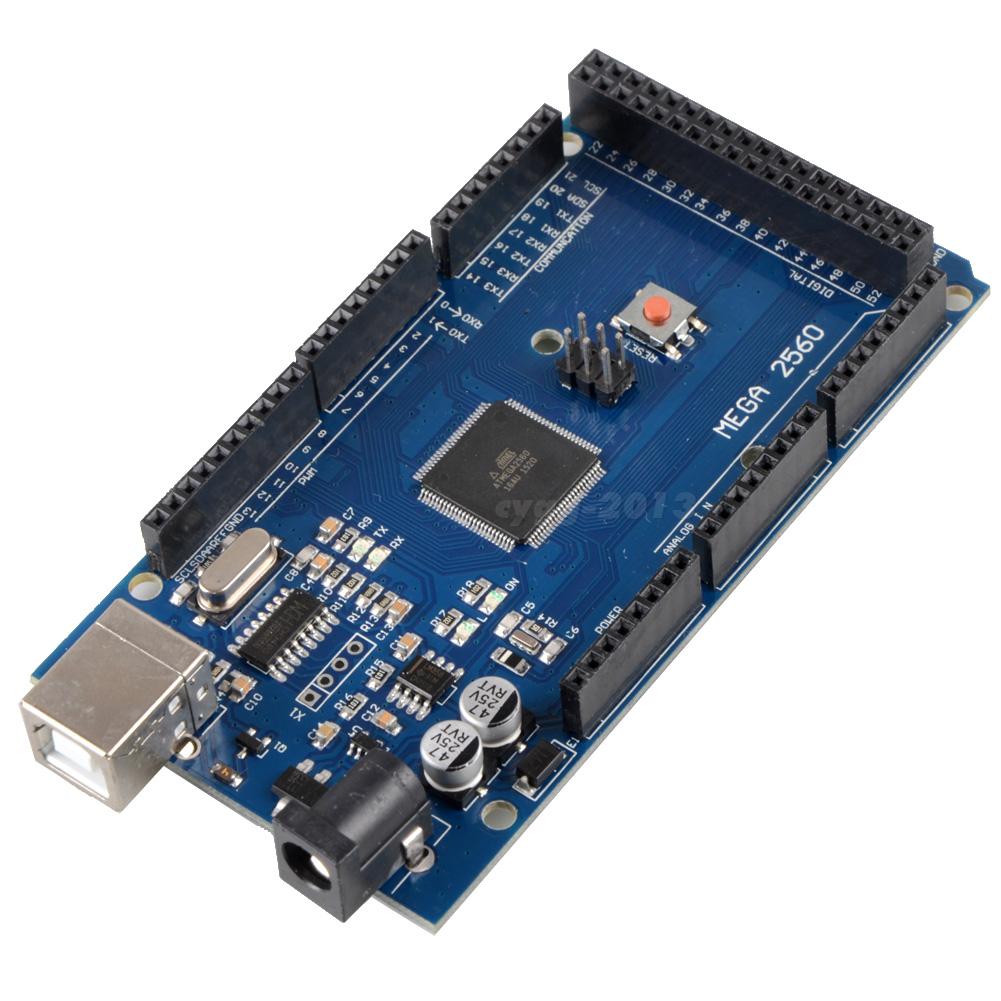

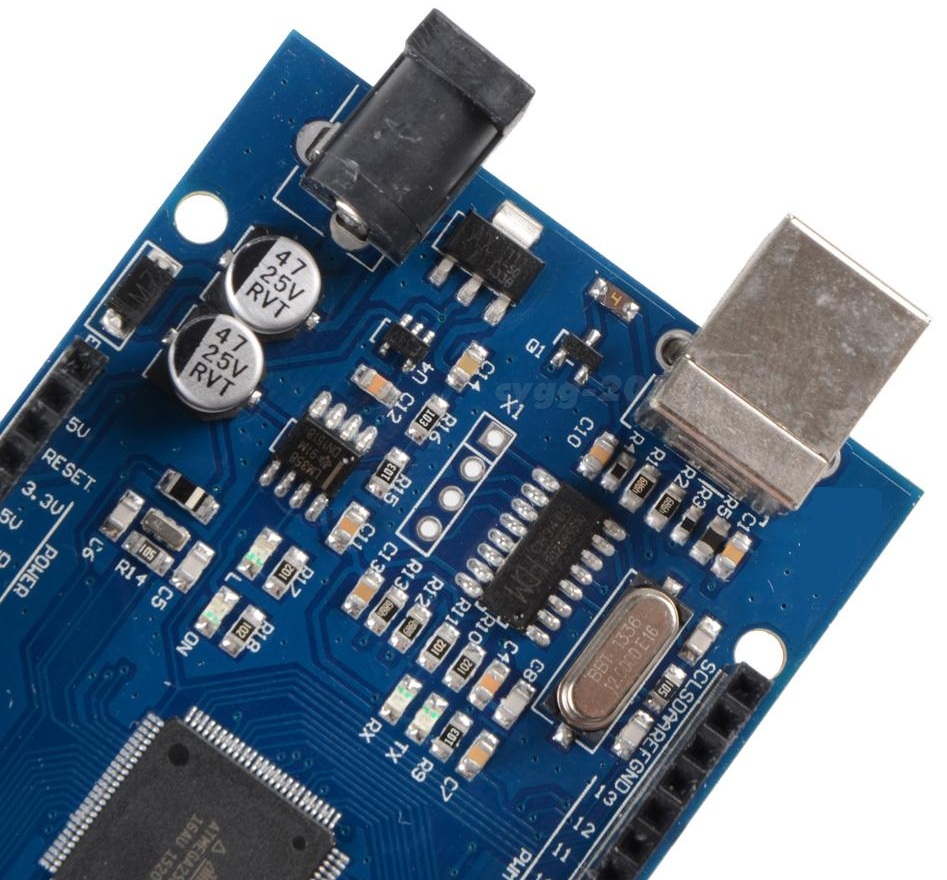

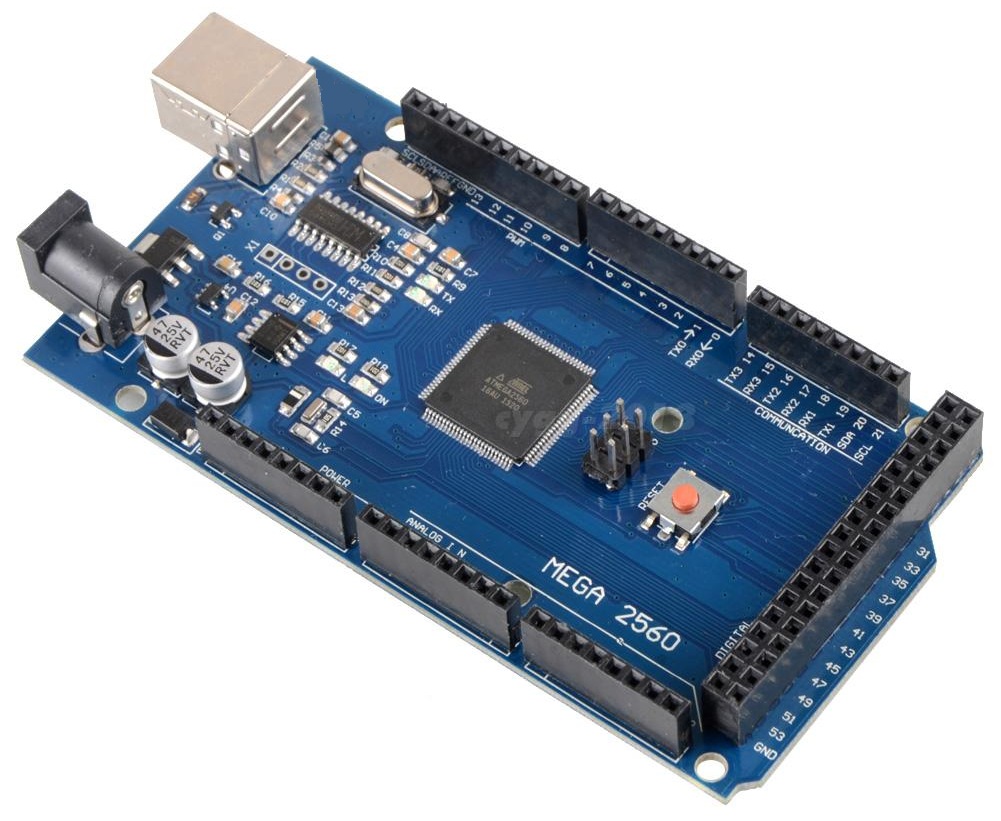

Arduino MEGA R3 Compatible Development Board



Development Boards

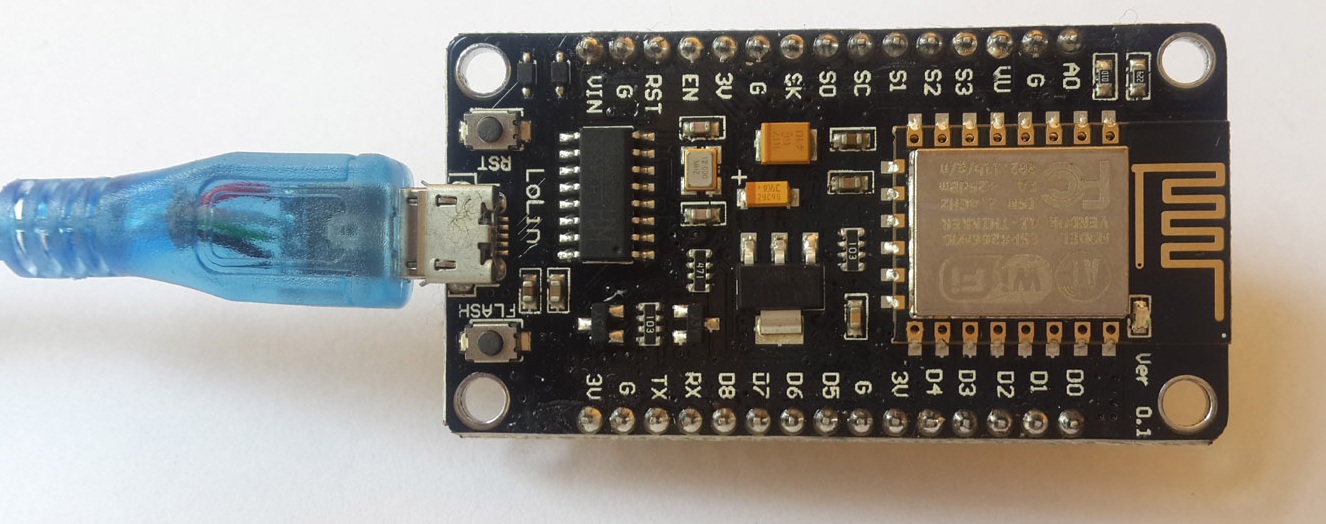

ESP8266 WiFi Node

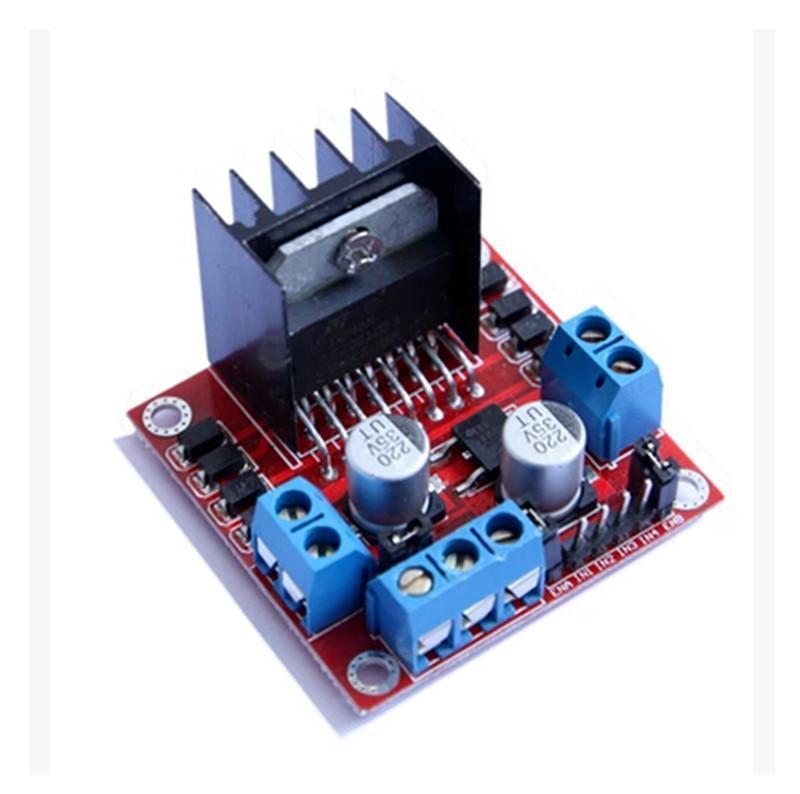

L293N Stepper Motor Driver

MAX7219 Dot Matrix

Servo Motor

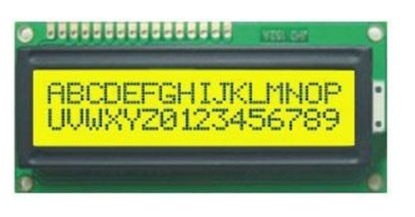

16 x 2 LCD Display

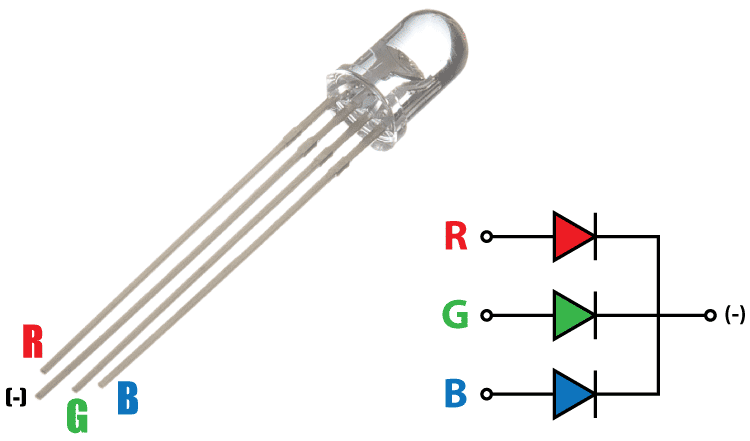

RGB LED
