DIGITAL TURNS TESTER (TURNS-TTPT)

( Multiple test in one instrument )

Coil Turns Tester , Turns Tester , Turns Counter , Coil Turns Counter , Toroidal Turns Tester , Bobbin Turns Tester , Coil Turns Tester , Ratio Turns Tester / Counter for Toroidal Coils, Current Transformer

Vasavi Digital Turns Tester can test Number of TURNS , POLARITY and DC RESISTANCE in a TOROIDAL or RING CORE COIL / CURRENT TRANSFORMER

VASAVI DIGITAL TURNS TESTER SPECIFICATIONS :

Measurement Freq.	50Hz, 100HZ,500Hz, 1KHz, 5KHz,10 KHz
Measurement Voltage	0.1 V ~ 1.0 V RMS
Four Terminal or Kelvin Test	For eliminating lead Resistance.
Display	0.5" LED Display : 4dgt -Value. Plus LED status indication
Res. (Rdc)	0.01Ohm-20KOhm
Turns & Polarity Toroidal Coils	TTPT-100 : 5 Turn ~ 1,000 Turns (0.2% + 0.5T) TTPT-1000 : 500 Turn ~ 10,000 Turns (0.2% + 1T)
Power requirement	110 ~ 230V / 50 ~ 60 Hz AC MAINS

Vasavi Digital TURNS TESTER ATTACHMENTS

Toroidal Turns Platforms:

TTPT100 : 5 T - 1000 T , TTPT1000 : 500T-10000 T
Accuracy : + 0.2% + 0.5T for high and medium permeability cores at suitable test frequency.
Internal Diameter must be able to pass a wire as thin as 0.2 mm. External Diameter as high as 200 mm.
Test Frequency Selectable 50, 100 , 500, 1, 5, 10 KHz.
Test Voltage adjustable 100mV to 1V in steps of 50mV.
The Platform has 2 connections for the coil and 2 for the probe wire. Measurement principle is based on dynamic comparison of the voltage across one turn and the coil. You will be able to get the polarity or winding indication with respect to the one turn reference.

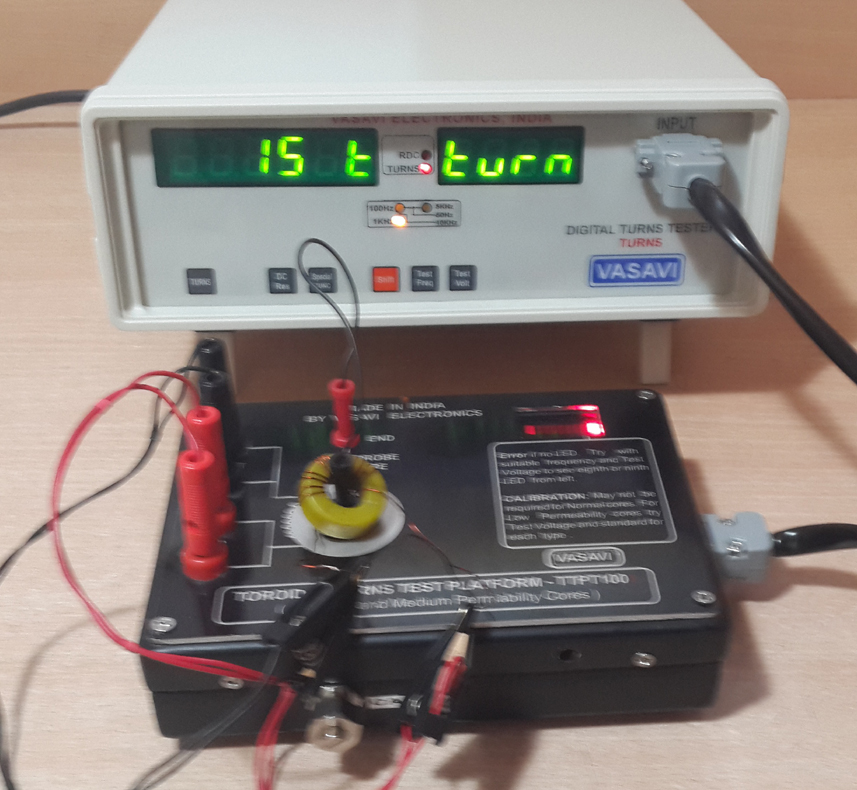

Pictures of TURNS-LCRTZ :
